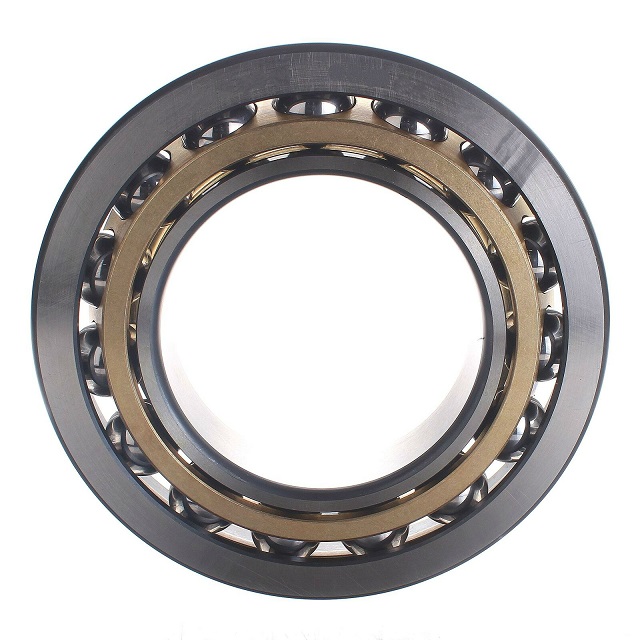

Product Description Angular Contact Ball Bearing Item # 7212BEP, Single Row Angular Contact Ball Bearing Product information 7212BEP Kd Series Kd065xp0 Ultra Slim Four Point Angular Contact Thin Wall Section Ball Bearing For Smart Robot Arm

Product Name	7212BEP Kd Series Kd065xp0 Ultra Slim Four Point Angular Contact Thin Wall Section Ball Bearing For Smart Robot Arm
Model number	7212BEP
Type	Angular Contact Ball Bearing
Bore Type	Round
Brand	Japan brand
Place of Origin	Japan
Material	High Carbon Chrome Steel
Cage Material	Steel
Cage Type	Pressed
Dimension	60*110*22mm
Weight	0.78kg
OEM/ODM	available
Sample	available
MOQ	1 piece

Angular Contact Ball Bearings
Angular contact Ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.
Single row angular contact ball bearingsSingle row angular contact ball bearings can accommodate axial loads in one direction only. This type of bearing is typically adjusted against a second bearing. Their bearing rings have an upper and a lower shoulder and are non-separable.Double row angular contact ball bearingsThe design double row angular contact ball bearings corresponds to two single row angular contact ball bearings arranged back-to-back.Four-point contact ball bearingsFour-point contact ball bearings are radial single row angular contact ball bearings with raceways that are designed to support axial loads in both directions. For a given axial load, a limited radial load can also be supported (Load ratio). The bearings are separable, i.e. the outer ring with ball and cage assembly can be mounted separately from the two inner ring halves.
Company Profile Payment & Delivery Our partner FAQ Q: What's the MOQ of Angular Contact Ball Bearing?
A: For Angular Contact Ball Bearing, No MOQ limited, 1 piece is also welcome.

Q: Are you a trading company or manufacturer?
A: We are a trading company. Direct sources from authorized distributor of various famous bearing brands.

Q: Are your brands bearings original?
A: Yes, all brand bearings are supplied from authorized sources.

Q: What are your company's main products?
A: Our main products cover nearly all kinds of bearings, we offer one-station solution for bearings.

Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer sample for free.

Q: Can you do OEM to print my logo/brand on the products? Angular Contact Ball Bearing.
A: OEM and ODM orders are warmly welcome.

Q: How long is your delivery time for Angular Contact Ball Bearing?
A: It depends on your quantity and stock data, Generally 2-10 days for stock items.

Q: What is your terms of payment?
A: Different terms for different orders, Welcome T/T, Western union, Alibaba trade assurance and etc. Contact Call me at +86-13416169795 (Crystal), 24 hours stand by. Please let us know model number & quantity & brand for checking price and freight for you. Believe us today, reward you tomorrow. Contact now！ 7212BEP Kd Series Kd065xp0 Ultra Slim Four Point Angular Contact Thin Wall Section Ball Bearing For Smart Robot Arm
Angular Contact Ball Bearing

Contact us if you need more details on Thin Wall Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Robot Bearing、Thin Section Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Ball bearings > Angular Contact Ball Bearings
